Heavy Duty Vacuum Chamber, Stainless Steel

Price:
$7875
Product ID:
CES-PKSR
Lead Time:
Contact Us to inquire about lead times
Return Policy:
150 days for a full refund

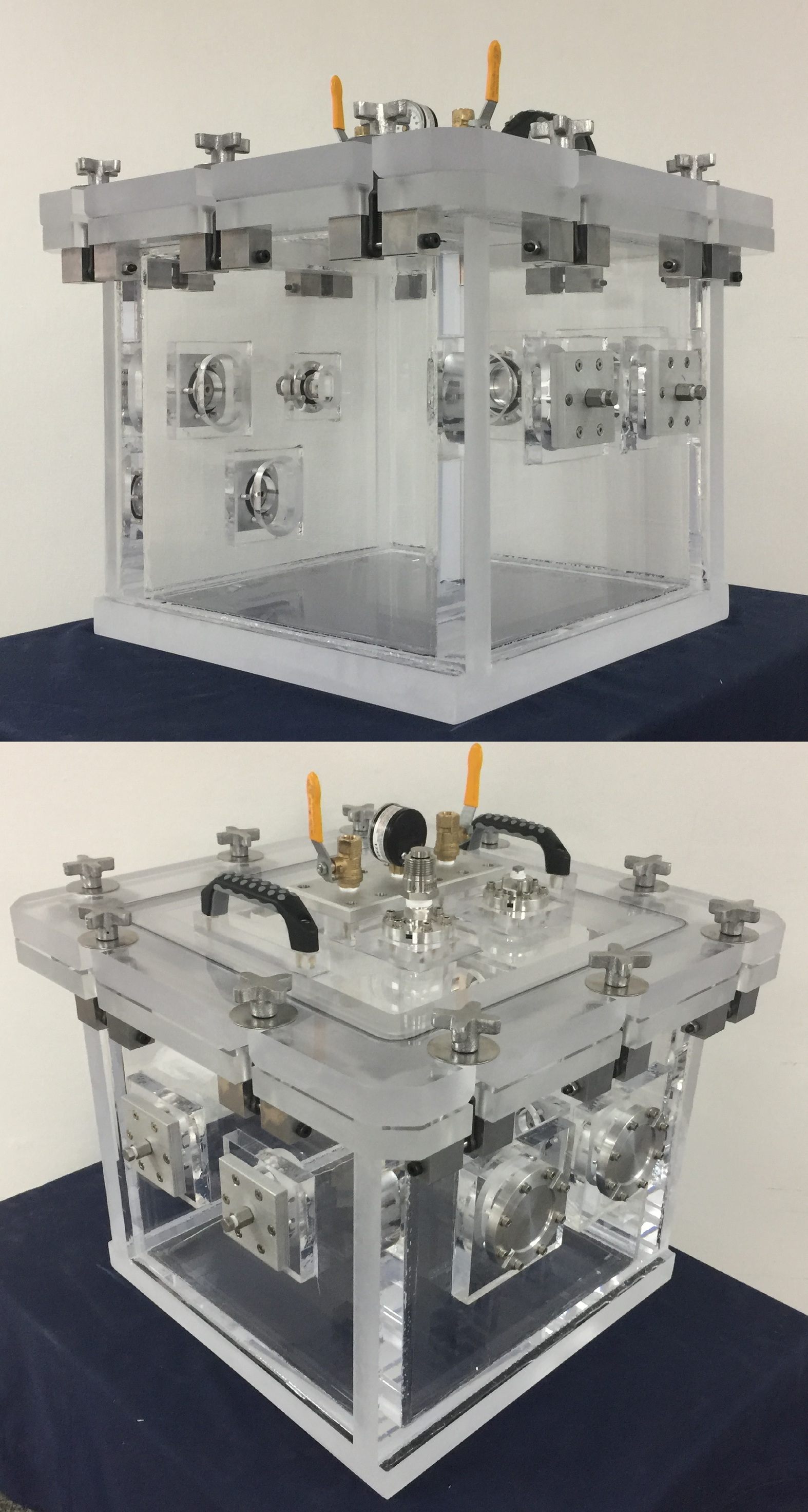

Additional Images of Sanatron Custom Engineered Systems

A collection of images highlights our expertly designed Standard and Custom Engineered Systems, each crafted with an unwavering commitment to durability, precision, and optimal performance. Whether your application requires a ready-made vacuum chamber or a fully bespoke, concept-to-completion solution, our technical expertise ensures flawless integration with your specific requirements. Reach out today to leverage our extensive industry knowledge and develop a solution meticulously tailored to your exact needs.

Product Specifications

Inside Dimensions:
12 inch cube
Chamber Material:
Stainless Steel
Door Material:
Stainless Steel
Vacuum Rating:
10 milliTorr

Features

Heavy Duty Vacuum Chamber
Stainless Steel Vacuum Chamber
Quartz Vacuum Viewport
Front Loading Vacuum Chamber
Table Top Vacuum Chamber

5-YEAR Warranty on Products, Parts, and Labor to original end user. We stand 100% behind our work!

Description

Introducing the Heavy Duty Vacuum Chamber, designed by Sanatron for superior performance and built to last. Constructed from stainless steel, this robust vacuum chamber is engineered to handle the most demanding industrial applications. The quartz vacuum viewport allows for clear observation of chamber interior during vacuum runs. Its front-loading design provides easy access, while the compact tabletop configuration maximizes space efficiency without sacrificing functionality.

This heavy-duty stainless-steel vacuum chamber has inside dimensions of 12 inch cube. The door is front loading. The table top footprint is about 16 inch by 16 inch. On the top wall, there are two 0.5 inch NPT valves and one dial vacuum gauge. The vacuum rating of this chamber is about 10 milliTorr.

With a focus on quality and reliability, the Heavy Duty Vacuum Chamber is the ideal solution for industries requiring durable, high-performance equipment. Engineered to maintain optimal vacuum conditions, it ensures consistent, long-term operation in even the most challenging environments.

Did you know that we carry a many more products?

We are an Engineering Excellence Company. You should check out some of our other items we carry; click on the links below.

Vacuum Degassing Systems
Vacuum Degassing Systems enable you to remove trapped gas inside your liquids - generally, epoxies. Degassing is a vital part of any two part or more mixing process, this includes but is not limited to epoxy, pharmaceutical mixing, potting, recipe creation. A vacuum degassing system consists of a vacuum pump, connection hardware (includes filters and traps) and a vacuum chamber.
Rotary Vacuum Feedthroughs
Rotary Vacuum Feedthroughs are devices that will enable you to physically rotate a specimen inside the vacuum chamber while vacuum present without decreasing the vacuum.
Our Work: Vacuum Storage of Pharmaceutical Products and Medical Supplies
A pharmaceutical manufacturer contacted us to build them a large vacuum storage system for their pharmaceutical products. They were looking for as much footprint as possible which is why they got a two-chamber system from us. They needed a total of 6 shelves per chamber including trays. Finally, they were looking to have both chambers to be placed on a table frame assembly with lockable swivel casters. What you are seeing is a two chamber system, each chamber is our 20 inch cube acrylic vacuum chamber, front load hinged door. Each chamber can be accesses independently while the other is under vacuum. The trays can be easily loaded and unloaded. This whole system can also be moved to anywhere in their facility.
Related Articles: Force Decay Leak Testing
Force Decay Leak Testing is a very popular quantitative leak testing method used to quality test package and product integrity due to its ability to detect small leaks which cannot be seen through visual inspection. In this method, the test specimen is internally inflated by either internal pressurization or vacuum force. The inflated test specimen will, in turn, apply a force on a pressure transducer. Finally, the change in force applied by the inflated specimen over a specified time is observed.
