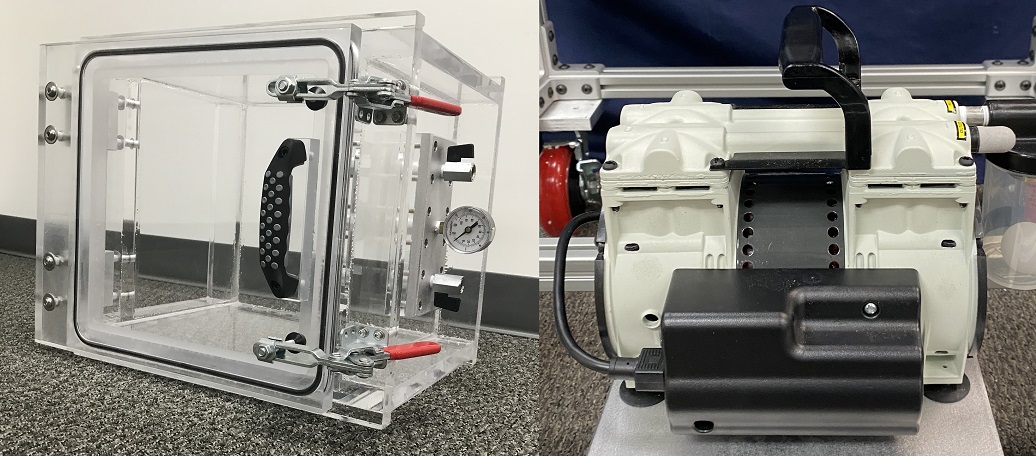

Vacuum Chamber and Pump System, Front Loading Acrylic Chamber 12 inch Cube, 3.5 CFM Oil Free Dry Vacuum Pump

Price:
$5650
Product ID:
VPC-ACHDRY-121212
Lead Time:
Contact Us to inquire about lead times
Return Policy:
150 days for a full refund

Additional Vacuum Chamber, Pump, or Controller Images

Check out some of our portable vacuum chamber and pump systems. All our vacuum chambers, vacuum controller, vacuum systems, or anything else that we make can be customized to your requirements and specifications. Contact us if to learn how we can build you a fantastic vacuum system.

Product Specifications

Chamber Material:
Clear Acrylic
Lid Material:
Clear Acrylic
Chamber Type:
Hinged Front Loading Door
Chamber Inside Dimensions (inch):
12 W, 12 D, 12 H
Vacuum Pump Type:
Oil Free Dry Piston
Ultimate Pressure (Torr):
65
Voltage:
115V

Features

Fully Assembled and Ready To GO
Crystal Clear Acrylic Vacuum Chamber
Oil Free Dry Piston Vacuum Pump
Connection Hardware
Front Loading Chamber
Optimized Vacuum System
1 Year Safe Buyback Warranty

5-YEAR Warranty on Products, Parts, and Labor to original end user. We stand 100% behind our work!

Description

Fully assembled and ready to go acrylic vacuum chamber and pump system. Includes the correct connection hardware and the appropriate vacuum pump. This system features a 12 inch cube (inside dimensions), front door loading, crystal clear, acrylic vacuum chamber. A standard duty, 3.5 CFM, Oil Free Dry Piston Vacuum Pump with (runs dry oil free and with minimum maintenance) and the appropriate vacuum connection hardware that includes a 1/4 inch NPT vacuum rated valve, 5 foot vinyl vacuum hose, hose barbs, and hose clamps.

Finally, a Vacuum Chamber and Pump System where all the appropriate vacuum components are supplied. No need for you to spend countless hours looking for all intricate and proprietary vacuum components. No need to email back and forth between several suppliers trying to figure out if it all will fit. No more getting the wrong parts and having to tell your boss that the order taker shipped the wrong vacuum valve and that your project is going to be late. And most importantly, you will NOT have to assemble this Vacuum Chamber and Pump System because we have done this for you (and Quality Tested it too!) We want you to do your best work, get your projects done, get your goals accomplished, and let us build this Vacuum Chamber and Pump System for you!

We have spent over a decade building vacuum systems for our happy clients such as NASA, DOD, Google, Intel, and other fantastic companies. This Vacuum Chamber and Pump System is the result of many years of design experience and field testing. We have optimized our Vacuum Chamber and Pump Systems for Quality, Performance, and Cost. We are happy to provide you with a fully assembled and ready to go Vacuum Chamber and Pump System, all you have to do is plug the vacuum pump into the electrical outlet, and that’s it. Please note that yes, we can customize your vacuum chamber and Pump System to anything imaginable. Contact us now if you need a custom vacuum system.

Get your Portable Vacuum Chamber and Pump System!

A Vacuum Chamber and Pump are pretty heavy; they may be a challenge to move. Fortunately, you can place your vacuum pump and vacuum chamber and connection hardware onto a portable Vacuum System with four (4) lockable Casters. Placing your heavy vacuum chamber onto a skid will swiftly turn in into a mobile vacuum system that you can move around your facility with ease.

If you are growing and things are changing at your company, having a portable vacuum system is highly beneficial for obvious reasons. Likewise, portable vacuum system will also allow you to share resources between departments; You can let others borrow your vacuum system for brownie points!

Don’t scuffle trying to move something this hefty. Make it portable, make it movable, make it mobile, click here to find out

We have many more resources on our website that you should check out

We treat our customers well by Over-Delivering on our Promises (reason why we are Highly Rated on Google My Business). What are you building? Take a look at the links below and discover some of the cool things we make.

Pressure Decay Leak Testing Systems
Pressure Decay Leak Testing Systems are instruments that detect and quantify a leak by measuring the pressure drop over specified amount of time. Any specimen that is inflated will stay inflated if it is leak tight. On the other hand, of a leak exists in the inflated specimen, air will escape through the orifice and decrease the pressure inside the specimen. The higher the pressure drop, the high the leak.
Thermocouple Vacuum Feedthroughs
Thermocouple Vacuum Feedthrough are air-tight components that enable the measurement of temperature inside the vacuum chamber during vacuum operations. If you have to run thermocouple wires into the vacuum chamber in order to measure temperature of a specimen during vacuum operation, a thermocouple vacuum feedthrough will enable you to do that.
Our Work: High Altitude Vacuum Testing of Electrical Connectors and Components
This was an interesting project where one of our customers needed to test wires up to 44 inches long within a high altitude simulation environment. In addition to testing wires, several other electric connectors required altitude testing as well. The altitude requirements were 100,000 feet (30.510 km) which corresponds to 8.36 Torr - a piece of cake when it comes to the vacuum requirements of our chambers.
Related Articles: Dry and Wet Vacuum Leak Quality Testing of Sachets Filled with Powder or Liquid
This article will talk about how to test the seal integrity of food bars. You will understand what you will need to do in order to ensure good seal quality. This article covers the seal integrity testing of Breakfast bars, Chocolate candy bars, Crisped rice bars, Energy bars, Granola bars, Health bars, Protein bars, Fruit and Nut Bars, Meal Replacement Bars or any other food bar sealed with a flow wrapper.

Additional Comments

1. Depiction: We go above and beyond to represent our products the best we can, but all images are for reference only. If you want the exact dimensions of a product, please refer to the product drawing. If the drawing is not present, please contact us.

2. Discount: If you are ordering more than one item you will qualify for a discount, contact us for more details. No discount will be given after you have ordered and then realized you can get a discount. We put in a lot of effort writing this and we don`t reward failure to read our descriptions. However, since we are nice guys, we will give you a discount on your next order.

3. Shipping: The shipping rates are for the lower 48 states only; additional shipping charges apply to Alaska, Hawaii, and international orders. Keep in mind that international order will also be subject to duty and other charges.

4. Products: Our products are built-to-order; therefore, your product can be customized, but you must let us know beforehand. The pricing, shipping terms, and lead time apply to orders of less than three (3) items. If you are ordering more than 3 items, you should contact us to discuss your quote.

5. Return Policy: 14 days on all standard products. We stand 100% behind our products. If there was a mistake on our part, you will be refunded 100% of your money including shipping. If the mistake was on your part or you decided that you didn`t want it after all, you will pay for shipping and we will fully refund rest of your money. Chamber must be insured during return shipping for the price that you paid for and in a non-damaged condition. Return Policy does NOT apply to custom items, jobs, or products. If you have asked us to modify any of our standard products, you will not be able to return your item.
